SX-1080 ：Arc spray machine ,PLC controlled arc with high-end advanced double atomizing spray gun system

 Function: can thermal spray wires：

Thermal spraying wire materials include: zinc wire, aluminum wire, iron wire, copper wire, stainless steel wire, molybdenum wire, Babbitt alloy wire, Monel wire, nickel based wire, chromium based wire, nickel chrome alloy wire, nickel aluminum bottom wire, powder core wire, solid core wire and so on

Characteristics:

1. Central integrated control system

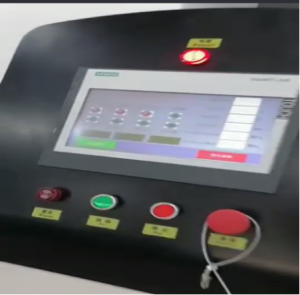

Siemens touch screen +PLC control mode, automatic setting, storage and continuous adjustment of spraying voltage, current, air pressure, wire feed and other parameters, realize automatic closed-loop control of spraying process, automatic ignition, shutdown, soft start and automatic protection of voltage, current, air pressure.

Touch screen display real-time parameters, monitoring and safety linkage, to ensure the safety of personnel, equipment and environment, the control system can record the main working parameters of the equipment operation process within a month, data interface can be reserved to access the central control system, monitoring equipment running status, with fault display and alarm functions.

2. Advanced double atomizing arc spray gun

* Equipped with advanced technology imported from the United States of America, double inlet arc spray gun to achieve double atomization, propane gas or nitrogen can be added to achieve different coatings.

Usually used for machine-mounted spraying operations. It is an arc spraying system with very stable performance and excellent coating performance. Coating morphology is smoother (can reduce nearly half of the post-processing), lower porosity, higher coating hardness

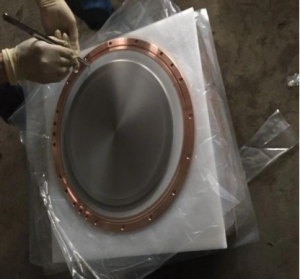

At present, it is widely used in production lines of various kinds of products (such as capacitor, non-stick pan, printer paper feeding spindle, mold manufacturing, coating target coating, etc.)

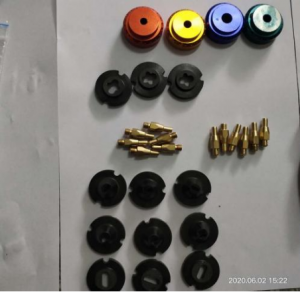

* Nozzles of different diameters and air caps of cross, word and plum shape are combined together to achieve a variety of spraying parameters and spraying effects

3, high power spraying power supply

* 35 kW 1000A high power flat characteristic spraying power supply, strong atomization power,

* Wire feeding diameter 1.6-3.2mm,

* Suitable for automatic production line operation

Areas of application:

Part name brand origin

PLC controller of Siemens in Germany

TOUCH screen Siemens Germany

Machinery manufacturing, electrical and mechanical, aerospace, energy, water conservancy, electric power, mining, metallurgy, petrochemical industry, municipal construction, large steel structure, and dye printing, paper making, printing press roller, all kinds of mold, stamping die, drawing die, injection mold, die casting, forging, glass mold, mould, powder metallurgy, mould such as abrasion and processing and repair for improvement of the mold surface hardness, wear-resisting corrosion resistant heat resistance and self-lubrication Mechanical and electrical, car building coating target material and other environmental protection machinery thermal spraying processing fine grinding mirror polishing, restore size repair anti-corrosion and anti-wear protection coating layer, site construction. Repair all kinds of mechanical equipment parts wear, strain, corrosion, peeling

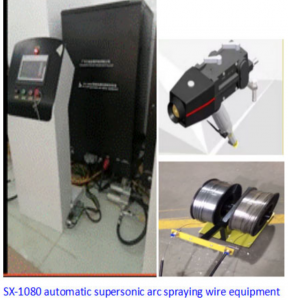

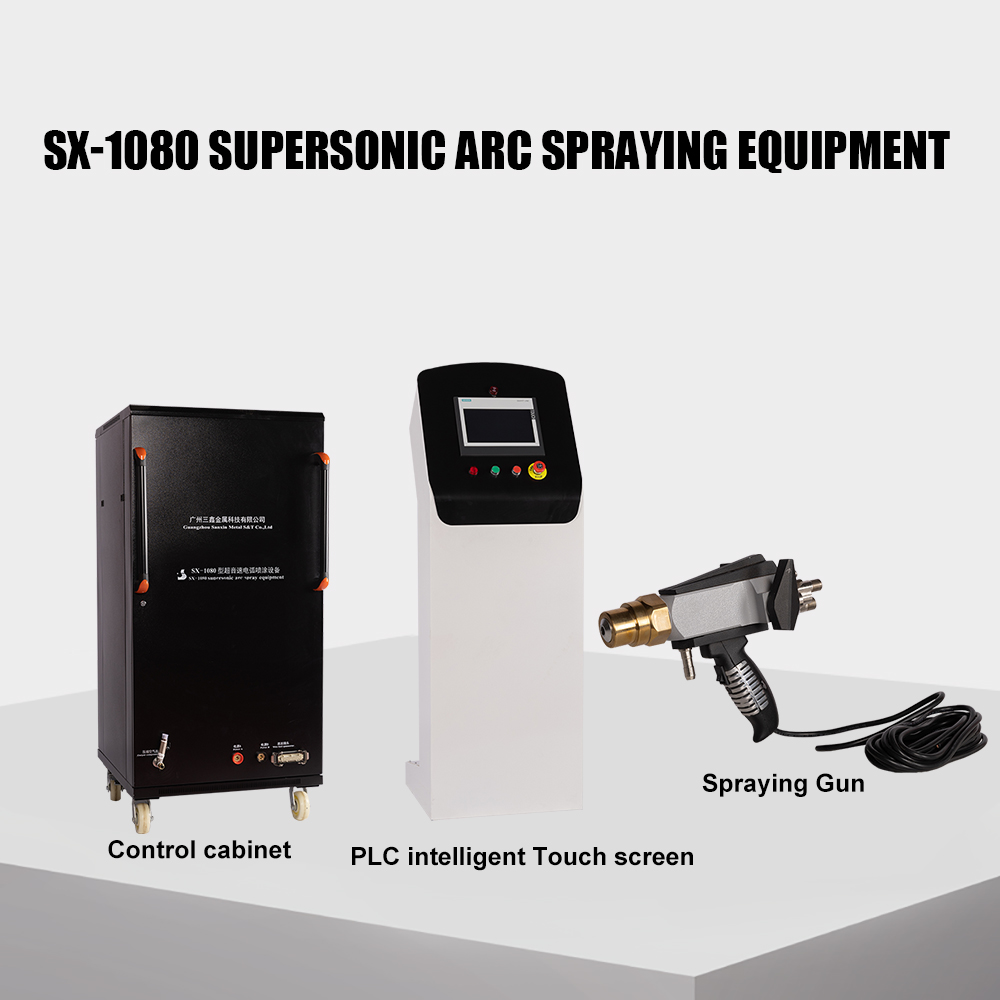

Form a complete set of :

The equipment includes:

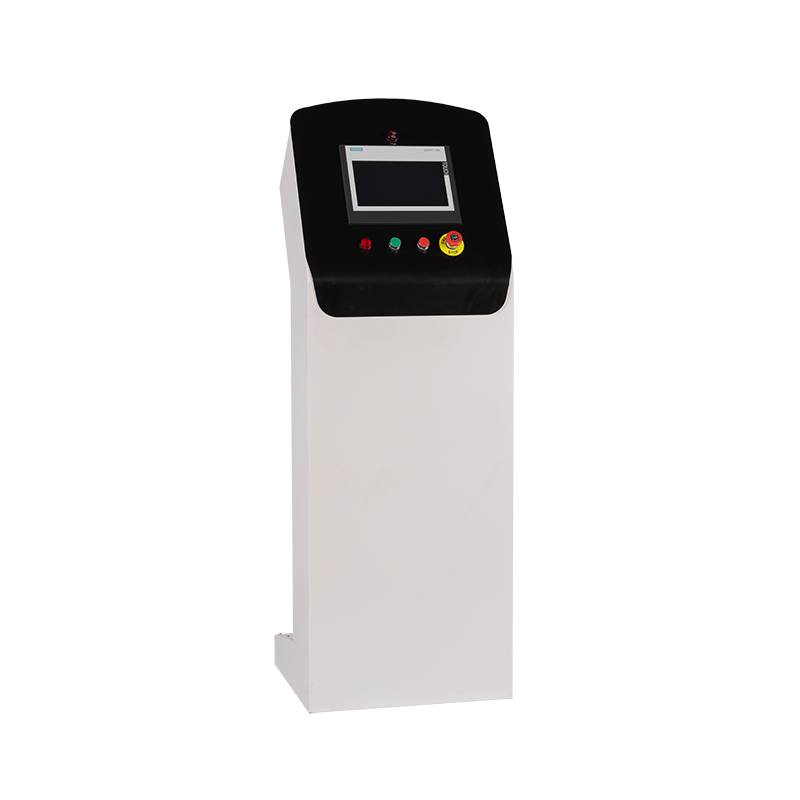

(1) PLC Siemens touch screen control safety system

(2) 1000A large power spraying power host machine

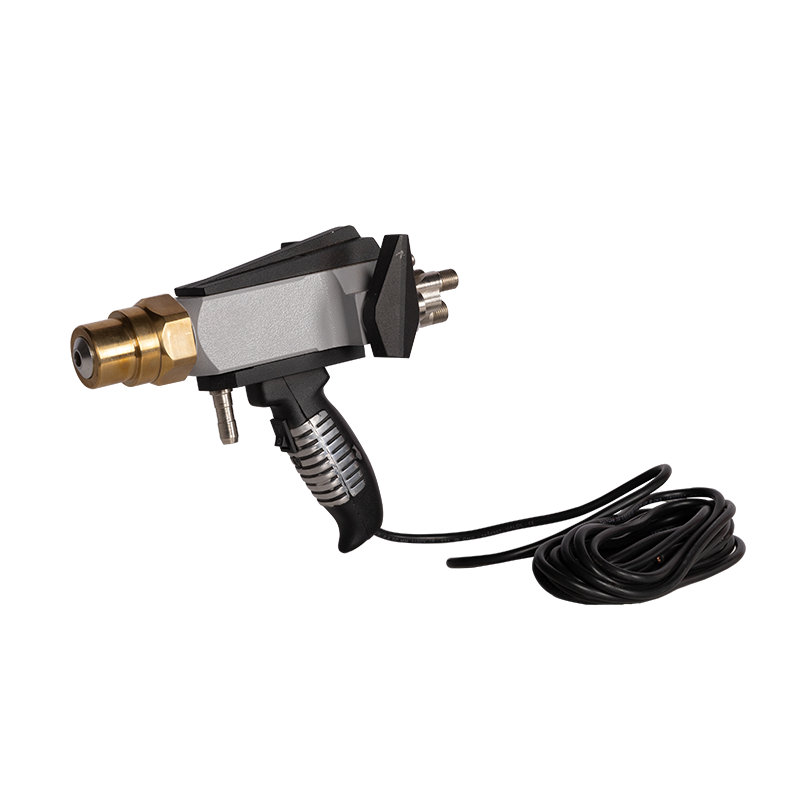

(3) Advanced American technology imported double fog spray gun

(4) Wire feeding cart
