Compare to other HVOF ,there are eight different notable feature as followings:

1. Kerosene fuel is combustion while oxygen is accelerant .It is a relatively safe combustion mode;

2. The spraying gun is designed according to rocket principle. The pressure in combustion chamber can get up to 150PSI,The speed of flame is more than 2000m/s. The output power is huge and can be adjusted;

3.Radial powder feeding. This new method of injecting the powder can be preferably solubilized and uniformly distributed throughout the flame, improving the coverage efficiency and quality of the coating;

4. The system is designed to control temperature range in a certain interval of the positioning and increase the speed increased as the primary optimization target function; The coating is not only combination of high strength, high coating density, and the surface stress is a compressive stress proved by X-ray diffraction apparatus; proven by X-ray diffraction apparatus manufactured by;

5.Modular design, high-performance PLC control, Safe and simple operation;

6.Particles speed is 1100 m/s  by combustion  (3300-3300 per feet per second).It is significantly faster than other HVOF system ;

7.The thickness of coating layer is more than 1/2 inch (compressive stress coating).The hardness is higher than any other HVOF system (HVOF- 8000 type spraying WC - Co coating microscopic hardness is up to 1450, and WC - Co coating micro hardness by gas of HVOF is only around 900 ~ 1100);

8.SX8000 HP/ HVOF spray equipment achieves high pressure HVOF coating with excellent quality , the binding strength of coating can reach 90MPa;

SX-8000 HP/ HVOF spray equipment insists of :

(1) Control cabinet

(2) Spray gun

(3) Water chiller

(4) Kerosene storage tank and Pipelines connection system, etc

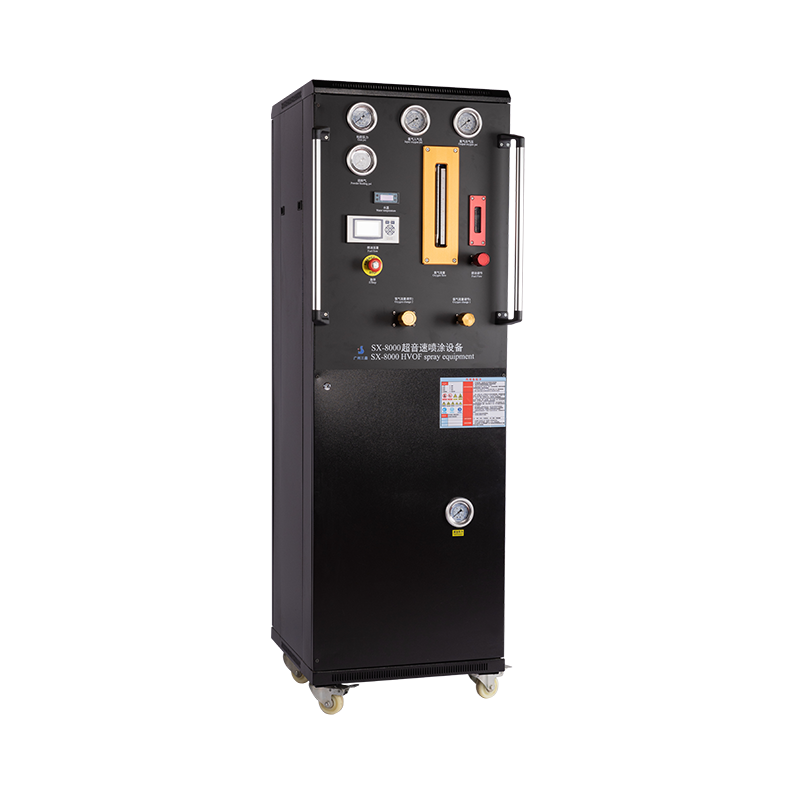

A. Control cabinet of SX-8000 HP/ HVOF spray equipment

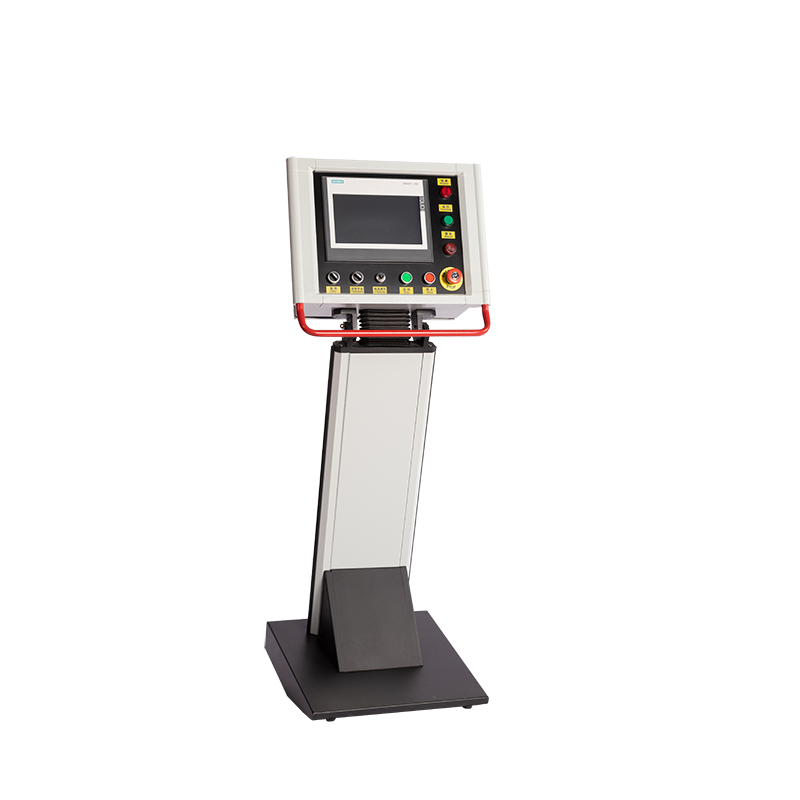

Control cabinet is the control center of supersonic spray system, which uses the current high tech and automatic controls for the entire spray system .SX-8000 HP/ HVOF spray equipment can get the advanced level of similar foreign products, superior performance, ease of operation. Control cabinet adopts touch control terminal to put operation/ setting/display/ process and fault alarm monitoring together, simplifying panel design, easy to use, simple operation and intuitive.

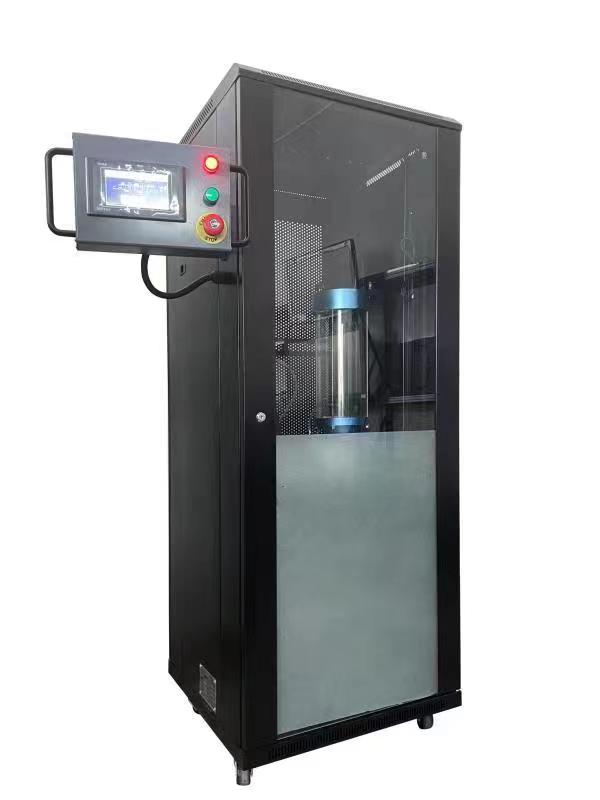

B.  Powder feeder for SX-8000HVOF spray equipment

Powder feeder for SX8000 HP/ HVOF spray equipment is a device that used to store spray powder according to process requirements to deliver powder to the gun  . Nitrogen is the powder feeding gas. Spraying powder through a gas atomization vibration so that the powder feeding device to exit, along with to send powder gas left to send powder barrels into the spray gun.The powder feeding speed can be adjusted  by adjusting potentiometer on control panel.

C. Spraying gun for SX-8000 HP/ HVOF spray equipment

SX8000 HVOF spray gun uses kerosene as fuel, oxygen as the combustion gases, air and water for the cooling body, nitrogen for feed powder. This gun can be working with a long continuous stability.

Parameter for Spray gun of SX-8000 HP/ HVOF spray equipment

D. Water chiller for SX-8000 HP/ HVOF spray equipment

Dual compressors drive can reduce the overall volume and increase your space.It mainly used to let the gun to get efficient cooling.We choose temperature controller imported with high-precision digital display to control accurately the temperature at ± 1 ℃ and range 3 ℃ ~ 45 ℃. Adopting High-efficiency condenser and evaporator, the heat exchanger effectiveness is very high, you can save power more than 35%. Schneider Electric brand of electrical accessories ensure the safe operation of the unit. There is a open stainless steel water tank insulation, long life, easy to clean and efficient maintenance.
